Getting Started with Mirror

Why Mirror?

Mirror makes developing your Android app’s UI faster and more effective. It displays your layouts on your phone or tablet, updating in real-time as you code. You can preview your app in a realistic context without the limitations or inconsistencies of Android Studio. If you’re unfamiliar with Mirror, check out this video of Mirror in action.

Using this guide

We’ve prepared a small sample project you can use if you want to play with the examples with this guide. To get it, clone the Mirror samples repository and import the Tutorial project into Android Studio. You can also follow along using your own project; all of the examples here are very general.

Getting started: mirroring static layouts

If you’re using our Android Studio plugin (highly recommended!) there’s nothing to configure to use get started; Mirror will automatically find your modules and figure out your project structure (currently only Gradle-based projects created with Android Studio are supported). If you’re using the standalone version of Mirror, see our separate setup guide.

Mirror Android Studio plugin

Click the “Start/Stop Mirror” button in the Android Studio toolbar (standalone users: the big Start button). If you have a device attached to your computer with debugging enabled, Mirror will install our previewing application on your device, and in a couple of seconds it will launch and display a list of the layouts in your application. Select one of these layouts to see what it looks like.

List of screens in sample project

Things to try

  • Preview the list_item screen

  • In layout/list_item.xml, set layout_centerVertical to false in the name TextView

  • Remove the name TextView. Add it back in

  • In values/styles.xml, change the layout_width and layout_height in the Avatar style

Remember to save the file after each change. Every time you save a file, the preview on your device will quickly and automatically update to show the modified layout. Creating styles and layouts that look exactly how you want is much easier when you can immediately see the effects on a real device.

Populating layouts with simple dynamic data

Chances are your layout has some elements that are filled dynamically, like a “name” text field, or an “avatar” image. It’s important to preview your layout with this dynamic data in place, so you can see how the layout will really look.

Android Studio supports this to some extent with tools attributes, and Mirror also supports tools attributes in the same way. Tools attributes set in your layouts will show up in your on-device preview just like in the Android Studio preview pane.

Mirror also supports another, more powerful way to simulate dynamic data in static previews, called sample data. If you look in your main app module, you’ll see that there’s a new mirror directory. This contains a collection of files with the same names as layouts in your application. These are screen files, and each corresponds to a screen that you can preview using Mirror.

Mirror screens

There are a number of special elements in a screen file (see the full spec here), but most elements in the screen file correspond to views in a layout. These elements can be used to populate views with data. For example, suppose we have a layout called list_item with this code:

<!-- layout/list_item.xml -->
...
<ImageView android:id="@+id/avatar" />
<TextView android:id="@+id/name" />
...

In the corresponding screen file (by default mirror/list_item.xml) we can populate these elements in a similar manner to tools attributes:

<!-- mirror/list_item.xml -->
<screen>
  	<_content layout="list_item">
	<name text="Android" />
	<avatar src="@drawable/android_avatar" />
  	</_content>
</screen>

Generally, a drawable used in development like this isn’t intended to actually be included in the application. You can put resources like this in the mirror/res directory, which behaves exactly like the regular resource directory (ex. different drawables for different device resolutions) but will only be used by Mirror and won’t be included in your built application.

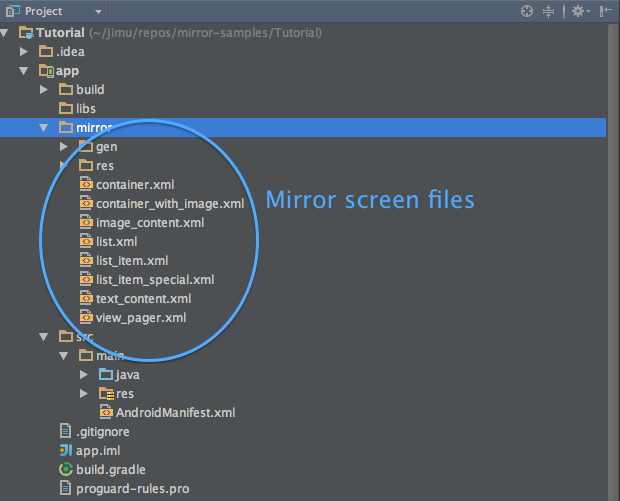

Mirror resource directory

Things to try

  • Open the list_item screen on your device, and the mirror/list_item.xml file in your editor

  • Change the text in name

  • Add an attribute to name, for example textSize="32sp"

Populating layouts with complex dynamic data

Now lets move beyond tools attributes. Consider these layout snippets:

<!-- layout/list.xml -->
...
<ListView android:id="@+id/list" />
...

<!-- layout/list_item.xml -->
...
<TextView android:id="@+id/name" />
<ImageView android:id="@+id/avatar" />
...

In this example we have a list of people, and each person in the list will have a name and an avatar. To actually see what the activity will look like, we’d normally need to write a dummy adapter with some static data and hook it up to our layout. In the process we’d lose the ability to immediately preview changes in context. Sample data can solve this problem, and easily. Here’s an example screen file to preview the list layout filled with items:

<!-- mirror/list.xml -->
<screen>
  	<_content layout="list">
	<list>
  	<items layout="list_item">
    	<_item>
      	<name text="Android" />
      	<avatar src="@drawable/android" />
    	</_item>
    	<_item layout="list_item_special">
      	<name text="Duke" />
      	<avatar src="@drawable/duke" />
    	</_item>
    	<_item>
      	<name text="Tux" />
      	<avatar src="@drawable/tux" />
    	</_item>
  	</items>
	</list>
  	</_content>
</screen>

Now if you open the list screen in the Mirror app, you’ll see a list with three items:

Mascot list view

Changing any of the list or list_item layouts, the list screen file, or any other associated resources would all result in an immediately updated preview. Notice also the different layout, list_item_unread, in the second item of the above example. Sample data makes it easy to develop heterogenous list layouts with complex items, with live previews and no dependency on your Java code.

Things to try

  • Preview the list screen on your device

  • Duplicate one of the <_item> elements in mirror/list.xml

  • In mirror/list.xml, change the line <items layout="list_item"> to <items layout="list_item" count="5">

  • In layout/list_item_special.xml, change the textStyle of the TextView to italic

Nesting layouts and previewing fragments

It’s common in Android development, especially since the introduction of Fragments, to have entire sections of your UI that can be dynamically swapped in and out. Suppose we have a layout with a heading, and then a section we want to be able to fill with different layouts depending on the situation. We’ll call this container, and we’ll also assume we have a layout text_content that holds some text content to insert into container:

<!-- layout/container.xml -->
<LinearLayout android:orientation="vertical">
  	<TextView android:id="@+id/heading" />
  	<FrameLayout android:id="@+id/content_frame" />
</LinearLayout>

<!-- layout/text_content.xml -->
<LinearLayout>
  	<TextView android:id="@+id/body" />
</LinearLayout>

This is a common pattern; at runtime, content_frame would be filled in with text_content. An accurate preview of this UI would involve the text_content layout displayed inside the container layout, and content filled in for both. Again, sample data makes this straightforward. In sample data, any ViewGroup (such as FrameLayout) can have its own, nested content:

<!-- mirror/container.xml -->
<screen>
  	<_content layout="container">
	<heading text="Valuable content" />
		<content_frame>
  			<_content layout="text_content">
    			<body>Some extended body text. You can populate text views like this, with the same result as using the 'text' attribute</body>
  			</_content>
		</content_frame>
  		</_content>
</screen>

Opening container in the Mirror app on your device will show the whole UI exactly as in will appear in the final app.

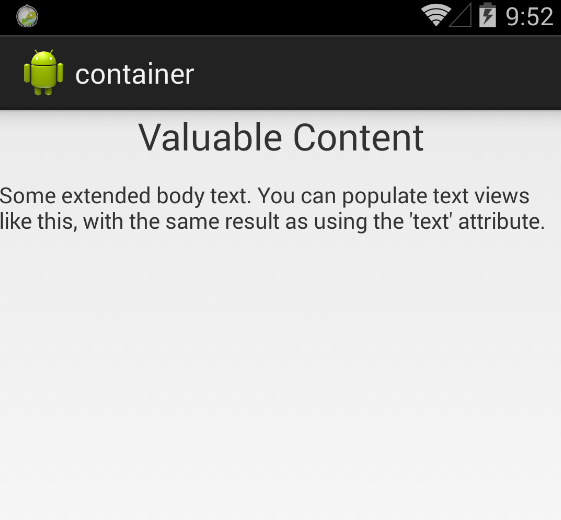

Container with text content

So far we’ve had one screen file for each layout in our project, but we can be more flexible than this. Suppose we have another layout, image_content, that we intend to put inside container as well:

<!-- layout/image_content.xml -->
<LinearLayout>
  	<ImageView android:id="@+id/image" />
</LinearLayout>

In our app, we sometimes want to show text content, and sometimes image content. To preview the image case, we could edit the container.xml screen file to show image_content, instead of text_content, but switching back and forth would be annoying. Instead, let’s create a new screen file:

<!-- mirror/container_with_image.xml -->
<screen>
  	<_content layout="container"> <!-- We'll use the same top-level layout -->
	<heading text="Valuable content" />
	<content_frame>
  	<_content layout="image_content"> <!-- But change the inner content -->
    	<image src="@drawable/mascot" />
  	</_content>
	</content_frame>
  	</_content>
</screen>

Now the Mirror app will show both container and container_with_image as previewable screens. We can check out both, or show them to a client, without needing to change any files.

Container with image content

Things to try

  • While previewing the container screen, change something in layout/text_content.xml such as the color or size of the TextView

  • While previewing the container_with_image screen, change the ContainerHeading style in values/styles.xml

High fidelity prototypes

To get high-quality, detailed feedback on an app’s design it’s important to have a high-quality, detailed prototype. Mirror’s sample data make it possible to create a native, high-quality prototype without depending on Java code. To give a quick idea of what you can do with Mirror, let’s see what a screen with tabs and an action bar will look like. We’ll re-use text_content and image_content from before, but we’ll need a new top-level layout with a ViewPager to hold the pages:

<!-- layout/view_pager.xml -->
...
<ViewPager android:id="@+id/pager" ... />
...

And here’s a screen file putting everything together:

<!-- mirror/view_pager.xml -->
<screen>
    <actionbar title="Pager Demo" icon="@drawable/mascot" showTabsFor="@id/pager"/>
    <_content layout="@layout/view_pager">
        <pager>
            <_page title="Android" layout="image_content">
                <image src="@drawable/android" />
            </_page>
            <_page title="Duke" layout="image_content">
                <image src="@drawable/duke" />
            </_page>
            <_page title="Text" layout="text_content">
                <body>This text is displayed in the 'Text' tab</body>
            </_page>
        </pager>
    </_content>
</screen>

Open up view_pager on the device to see how it looks:

View pager screen

Hopefully this gives you an idea of how far you can go creating accurate previews with Mirror with a very small amount of extra work. Check out and explore the sample data spec for a complete list of what you can do using Mirror.

Things to try

  • Preview the view_pager screen

  • Change the action bar title in mirror/view_pager.xml

  • Remove the tabs from the action bar in mirror/view_pager.xml (you can still swipe between pages)

  • Add a page for Tux to the view pager

  • While previewing the view_pager screen, add the attribute android:alpha="0.5" to the ImageView in layout/image_content
